ARTICULATED LOADER BOBCAT L23 / L28
This small, very manoeuvrable, grass-friendly articulated loader offers a small footprint and a high workload.
Small articulated loaders can tackle a multitude of big challenges in small spaces, while minimizing disruption on established surfaces. These nimble loaders feature a tightly rotating knuckle joint that allows maneuverability in tight spaces as well as a turf safety mode to reduce the risk of cutting turf when turning or carrying a load. Bobcat Small Articulated Loaders offer impressive lift capacity and a compact size that easily operates inside fenced landscapes, pens, nurseries and more. From material handling to grounds maintenance, this small machine can handle many types of landscaping projects.
BOBCAT L23 / L28 ARTICULATED LOADER SPECIFICATION
AVAILABLE MODELS
Model | Horsepower | Rated Operating Capacity Art. (ISO) | Auxiliary Std Flow | Rated Operating Capacity Straight (ISO) | Operating Weight |
|---|---|---|---|---|---|
BOBCAT L23 | 24.8 hp
| 1,159 lb
| 12.1 gal/min
| 1,395 lb
| 3790 lb
|
BOBCAT L28 | 24.8 hp
| 1,222 lb
| 12.1 gal/min
| 1,534 lb
| 4195 lb
|
ARTICULATED LOADER
FIT INTO THE LIMITS. WORK BEYOND LIMITS.
Increased lifting capacity
Bobcat small articulated loaders can lift and handle heavy loads, and they include a standard built-in counterweight for optimum lift capacity. You can add optional rear counterweights to further increase lift capacity and productivity.
Minimum soil disturbance
With their tight-turn articulated steering and lightweight overall footprint, Bobcat Small Articulated Loaders limit cuts or tears in the grass when turning or carrying a load. Once the job is done, you will have fewer tedious surface repairs to do.
High tractive effort
Depending on operating conditions, Bobcat small articulated loaders automatically activate one of two traction modes: High-Traction mode to control rough and slippery terrain or Turf-Safe mode for the least possible ground disturbance. The optional traction assist switch lets you temporarily override automatic modes to navigate adverse conditions.
4 FEATURES YOUR NEXT ARTICULATED LOADER MUST HAVE
Accessory mounting systems. Bobcat Small Articulated Loaders feature the Bob-Tach Attachment Mounting System to use a variety of attachments. They can also be equipped with the optional Power Bob-Tach system to change non-hydraulic attachments without leaving the comfort of your cab.
A large selection of attachments. With over 30 compatible attachments, a small articulated loader can be used to do many unique types of jobs that typically require multiple machines. Bobcat accessories offer the most versatility for your equipment investment. Whether it's handling dirt and snow, digging holes, doing brush jobs, or moving pallets of material, with the right attachment you can adapt to a new task in just a few seconds. minutes.
Auxiliary hydraulics. For even more accessory options, Bobcat small articulated loaders include an auxiliary hydraulic system. A maximum flow rate of up to 12 gpm and up to 2,900 psi gives you powerful performance and superb working results. Pressure-release quick couplers relieve system pressure for easy hydraulic connection and removal.
Comfortable workstation. Bobcat small articulated loaders don't skimp on comfort features. With a spacious cab that offers more room for the operator, cross-ventilated windows to provide fresh airflow and an optional enclosed and heated cab, these machines are designed to improve operator comfort by any season.
COMFORT
A spacious cabin with easy-to-use controls makes difficult projects easier to complete.
Not exactly what you are looking for?
Explore others to find the best machine for the job you need to do.
Bobcat Telehandler
It offers many of the same functions as a wheel loader, attachment carrier, and rough terrain forklift.
Bobcat Utility Vehicle
For reliable starting in cold weather, automatic glow plugs warm the engine.
Bobcat loader
The revolution that your work demands from the company that invented the industry.
Spacious cabin
To improve operator comfort and productivity during long days of use, the interior of small articulated loaders provides ample space inside the cab, including headroom, foot space. and the space between the seat and the steering wheel.
Intuitive dual-pedal travel controls
A simple double-pedal design on small articulated loaders allows for quick and easy direction changes - one pedal takes you forward, the other moves you back. This style of motion control is easy for operators to master, making the small articulated loader a great choice for seasonal employees or rental customers. It is also convenient and simple for operators who need to understand the controls of multiple machines.
Closed Heated Cabin
The optional cab enclosure helps operators stay comfortable and productive in cold and wet weather, and features a heated seat, strategically placed louvered vents and removable window panels for flexibility and all-season comfort.
Cross ventilation windows
Small articulated loaders include side and rear windows that open to provide fresh air flow through the cab, providing increased comfort for the operator.
Ergonomic controls
The steering wheel and joystick are easy to reach and intuitive to use, with fingertip auxiliary or telescopic controls that facilitate quick and easy operation, compared to mechanical switches. Bobcat small articulated loaders also offer variable rate control similar to skid steer and compact track loaders, unlike standard mechanical levers found on other machines.
Tight turning radius
Small articulated loaders offer precise maneuverability. The knuckle joint allows the rear tires to follow the path of the front tires as they turn, resulting in a very nimble machine that easily sidesteps obstacles and performs well in closed yards and small work areas.

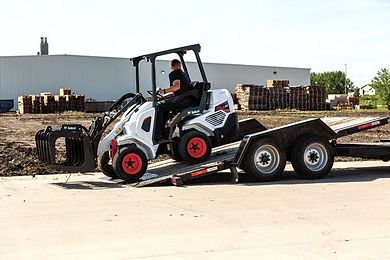

Easy to carry
Small articulated loaders are very transportable and relatively light, so you can quickly put your machine to work and get to work. They easily adapt to panorama trailers or dump trailers - and even some enclosed trailers that are used to transport compact loaders with a small frame.
Low speed, high torque motor
The reliable 25hp, 2600rpm engine delivers generous torque at lower rpm, providing more forgiving performance when the machine is pushed to its limit under load.
Efficient cooling
With their efficient cooling systems, Bobcat small articulated loaders deliver peak performance for improved operation and component protection. The side and front inlets bring fresh air into the engine compartment and send it out through the shielded rear outlet. The rear radiator screen is removable for easy cleaning, and its corrugated steel construction provides excellent durability. A separate temperature-controlled hydraulic oil cooler operates as needed to also ensure quieter operation.
PERFORMANCE
Impressive lift capacity, maneuverability and turf-friendly design help you get through tough landscaping jobs fast.
AVAILABLITY
Spend more time doing the job and less time maintaining your machine for increased productivity.
Easy maintenance
Bobcat Small Articulated Loaders are designed to make daily maintenance and routine maintenance easy and efficient. They feature easy access to the battery terminal, a high capacity air filter for long life, a maintenance-free engine accessories drive belt and centralized access to fuses and to the relays.
High capacity air filter
The high capacity two element filter with visual indicator is a feature that makes servicing Bobcat small articulated loaders easy. The air filter provides clean air flow to your engine and excellent contaminant retention capacity for long life and maximum component protection.
Maintenance-free engine accessories drive belt
A reliable serpentine accessory drive belt requires no tension and no maintenance.
Central access to fuses and relays
The fuses and relays on Bobcat Small Articulated Loaders are centrally located behind a cover inside the cab.
Standard instrumentation
Small articulated loaders feature an easy-to-read, backlit instrument panel that provides visibility into operating information, critical machine errors and warnings.
Machinery protection
Special functions protect the machine when working in tight spaces. Add extra protection - and don't worry about potential impact damage to the cooling assembly and radiator - by installing the optional rear protection accessory. To protect the machine when working in tight spaces and around obstacles, Bobcat small articulated loaders are fitted with protection in the corners of the cab. Rubber bumpers help protect the corners of the cab while articulating the loader.
